Raspberry Pi Zero W, hands-on: An extremely welcome new individual from the family

Subsequent to holding up much too long, I at last got my hands on the most up to date individual from the Raspberry Pi family. Is it safe to say that it was justified regardless of the hold up?

The Raspberry Pi Zero: unique (left), v1.2 (focus), and W (right).

The Raspberry Pi Zero W was declared on February 28th. I began attempting to get one when I saw the declaration. I at long last prevailing on May third.

Those two months of deferral and disappointment say a considerable measure in regards to the staggering interest for the Raspberry Pi all in all, and the Pi Zero models specifically, so I will begin with a concise depiction of that before getting into the principle hands-on bit of this post.

At the point when the first Raspberry Pi Zero was reported, I was sufficiently lucky to get one here in Switzerland from the Pi-Shop.ch rapidly. At the point when the refreshed Zero v1.3 was declared it took somewhat longer for me to get one from the Pi-Shop - possibly a week or something like that, on the off chance that I recollect accurately. At the point when the Zero W was declared I anticipated that would need to hold up about that long once more. In any case, when I checked the Pi-Shop page, I was astounded to find that it wasn't recorded. I got some information about it, and they said it would most likely be up to 14 days before they could get a few.

I saw in the Pi Blog declaration that they recorded the "official wholesalers" where the Zero W ought to be accessible - and the Pi-Shop.ch was not recorded. Indeed it just recorded one merchant in Germany (pi3g) as likewise covering Switzerland and Austria. Well.

I want to remain faithful to organizations who have treated me well, however in the event that the Pi-Shop would not have been ready to get a Zero W for some time I made sense of I would check pi3g. Beyond any doubt enough, they had the Zero W accessible for conveyance to Switzerland! Incredible! Sadly, when I attempted to request one, it thought of transportation/conveyance charges of €20! I'm absolutely not going to pay double the cost of the Pi Zero for conveyance, so I deserted that request. The Pi Shop said that they would have liked to have them inside 10 days or somewhere in the vicinity.

After a month the Pi-Shop still didn't have any, so I checked pi3g once more. This time the conveyance charges were more sensible, however when I went to checkout, they would just acknowledge installment through PayPal or bank exchange. I'm not going to join PayPal, and the charges for a universal bank exchange by and by are dreadfully high for a €10 buy, so I was stuck holding up once more.

At long last on the third of May I got the email saying the Zero W was accessible from the Pi-Shop. Around the same time there was another post in the Pi Blog about the quantity of Pi Zero W units sent up until this point (250,000) and the expansion of thirteen new Pi Zero merchants, one of which was the Pi-Shop.ch. Yippee!

The Pi-Shop now offers the Zero W "board just" at an exceptionally sensible cost of CHF 10.80. They additionally offer several unique "groups" with usually required odds and ends included.

Conveyance charges are still high with respect to the cost of the item, yet that is down to the Swiss Post, and in any case it's under pi3g needed. I requested a Zero W, the new case, and a microSD NOOBS card. Definitely, I know, that last thing is senseless in light of the fact that it is so natural to download and introduce the most recent Raspbian or NOOBS releae, yet I needed to perceive what it may resemble for somebody without earlier information or involvement with the Raspberry Pi.


Sufficiently alright for the business disappointments of getting a Pi Zero W, how about we proceed onward to the hands-on fun! To start with, at the highest point of the page and underneath you can see photographs of the front and back of the three Raspberry Pi Zero models. The Pi Zero W is on the left, the v1.3 is in the center, and the first is on the privilege..

The distinction between the first and v1.3 was anything but difficult to see in light of the fact that the camera connector was added to one end of the board. The distinction in the Zero W is more unpretentious. You can see pretty effectively that two or three new parts have been included a similar range where the camera connector is found. In any case, truth be told in the event that you look somewhat nearer you can see that there are many more changes to the design.

Raspberry Pi Zero: W (left), v1.3 (focus), and unique (right).

It's fascinating to note that not at all like the Raspberry Pi 3, they didn't need to fall back on adding segments to the "back" of the board. Take note of the rendition numbers scratched on the board.

The "first" is distinguished as "Raspberry Pi Zero v1.2" (was the v1.1 board ever really accessible?), the camera-redesigned rendition is "Raspberry Pi Zero v1.3", and the new model is "Raspberry Pi Zero W v1.1".

I haven't really had sufficient energy to give this a shot yet, yet it creates the impression that not at all like the v1.2/v1.3 change, the copper association cushions on the new board have not been moved in respect to the v1.3 board, so things like the Zero4U USB center point which interface with those cushions by means of pogo-pins ought to at present work.

I likewise got one of the new "authority" Raspberry Pi Foundation Pi Zero cases - and it is a stunner. It is made in an indistinguishable style and hues from the official full-sized Pi case.

The Raspberry Pi Foundation Pi Zero Case.

This is not only a "Pi Zero W Case", it fits every one of the three models of the Pi Zero. The base of the case has posts which fit the four mounting gaps in the Pi Zero sheets, and a tab on side which snaps over the board when it is pushed down into place, so it is held unequivocally set up.

Raspberry Pi Zero Case with Camera

There are three spreads included with each case: one strong, one with a gap for the Pi Camera focal point and a mounting connector for the Pi Camera board, and one with a space for the GPIO header.

Likewise included with the case is a short camera connector flex link, something I have been longing for since the first camera was declared, and I would nearly say edgy for since the Pi Zero v1.3 turned out. Mishandling with that long camera link within little cases was unpleasant.

For the individuals who might need to utilize the Pi Zero with a camera module however not have it mounted in the cover there is additionally an opening in the base of the situation where the more drawn out camera module link can turn out. That is a pleasant touch.

At the point when the case is collected with a camera module introduced, it turns out resembling this:

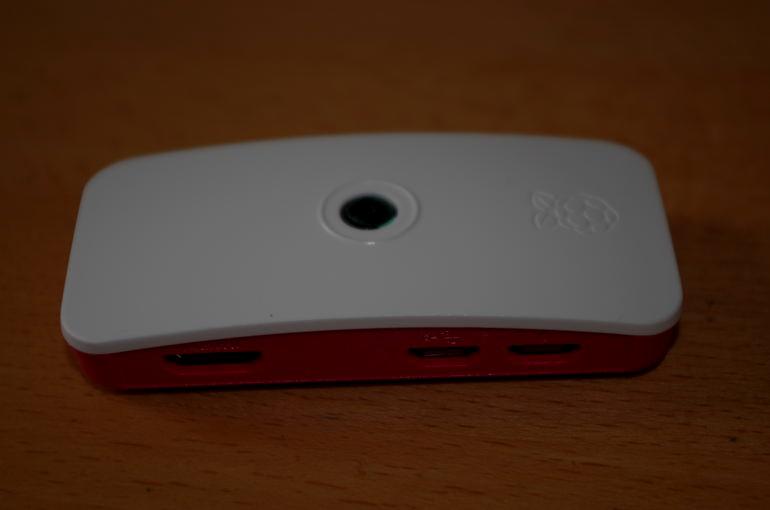

The Raspberry Pi Zero Case with camera introduced

That is quite recently incredibly conservative, and as I would like to think it looks completely magnificent.

The genuine fun begins, obviously, when you control it up. As I stated, I requested a pre-stacked NOOBS microSD card with this one, since I needed to perceive what it would resemble for a genuine noob to attempt to begin with a Raspberry Pi.

The main falter came when I was collecting everything. Like most other Pi Zero cases, the official case does not have outside access to the microSD card, so you need to recollect to embed the SD card before you put the board for the situation. I didn't. Rats.

The second (substantially greater) falter came when I fueled it up. The enormous change in the Zero W is the expansion of implicit remote systems administration - however the rendition of Raspbian that was on the NOOBS card was old to the point that it didn't have the drivers for the WiFi connector! Actually, it additionally didn't have the PIXEL desktop. So it booted up to a monstrous desktop, with no real way to make a system association. Ugh.

That is truly not great - and considering what is required to include either wired or remote systems administration to a Pi Zero, I would state that for a ton of unpracticed clients the story could end now. The $10 would be composed off, the Zero W card would arrive in a drawer some place and never observe the light of day again.

There are a few answers for this issue, none of which are horrendously troublesome the length of you recognize what to do:

Refresh Raspbian. This is self-evident - however it requires an Internet association. The implicit WiFi doesn't work yet, and the Pi Zero doesn't have a wired system association, so you would need a USB WiFi connector. Perhaps not exactly so natural all things considered

Re-compose the microSD card with the most recent rendition of NOOBS or Raspbian from the Raspberry Pi Downloads website page. This is not exceptionally troublesome, but rather it takes a touch of time. Here's a little tip - for the Pi Zero go for the Raspbian circulation instead of the NOOBS conveyance, unless you are particularly wanting to utilize it as Media Center, or you need to experiment with one of the option working frameworks incorporated into NOOBS.

In the event that you have whatever other Raspberry Pi sheets as of now being used, you can squeeze a microSD card from one of them to use in the Zero W, and afterward put the NOOBS card into a Pi 1/2/3 with a wired system association so it can be refreshed significantly more effortlessly.

I took the third alternative, and utilized a microSD card from another Pi Zero. When I booted with that card introduced, it came up to the beautiful PIXEL desktop and both WiFi and Bluetooth systems administration were up and working impeccably. Much better.

I began with my standard Logitech console and mouse, utilizing a Unifying dongle on the USB OTG connector link. Be that as it may, with Bluetooth working now, I could associate the Logitech K380 console and M535 mouse, and after that I could evacuate the USB link. That left me with an exceptionally decent and extremely minimal setup, and no USB link dangling from the Zero W. Well done!

So that is essentially it, the Pi Zero W is up and running, much the same as whatever other individual from the Raspberry Pi family. It is unquestionably an exceptionally welcome individual from the family, on the grounds that having the implicit WiFi and Bluetooth network is considerably more pleasant than using a USB dongle (or two!).

In American baseball slang, I would state that as a result of the dissemination/conveyance issues and deferral, the Pi Foundation didn't hit a grand slam this time, yet it is no less than a standard procedure twofold.
